High Security Mesh Fencing & Posts
Comprehensive mesh fencing solutions designed to meet the most demanding security and perimeter protection requirements

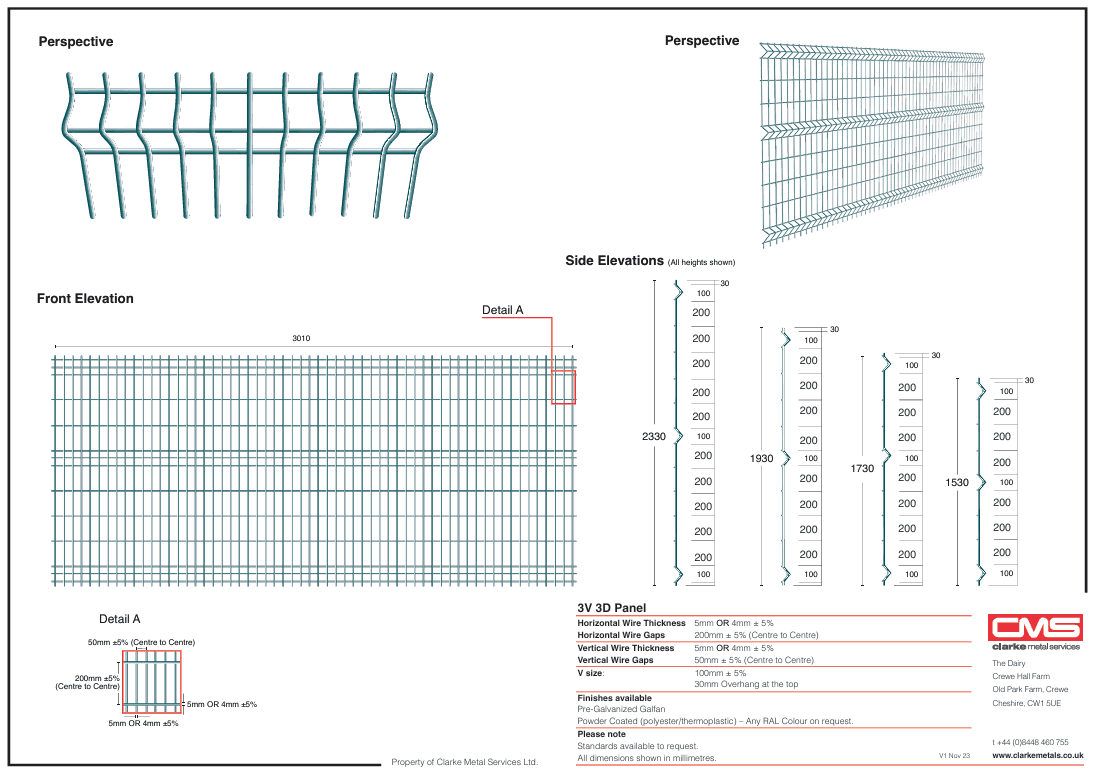

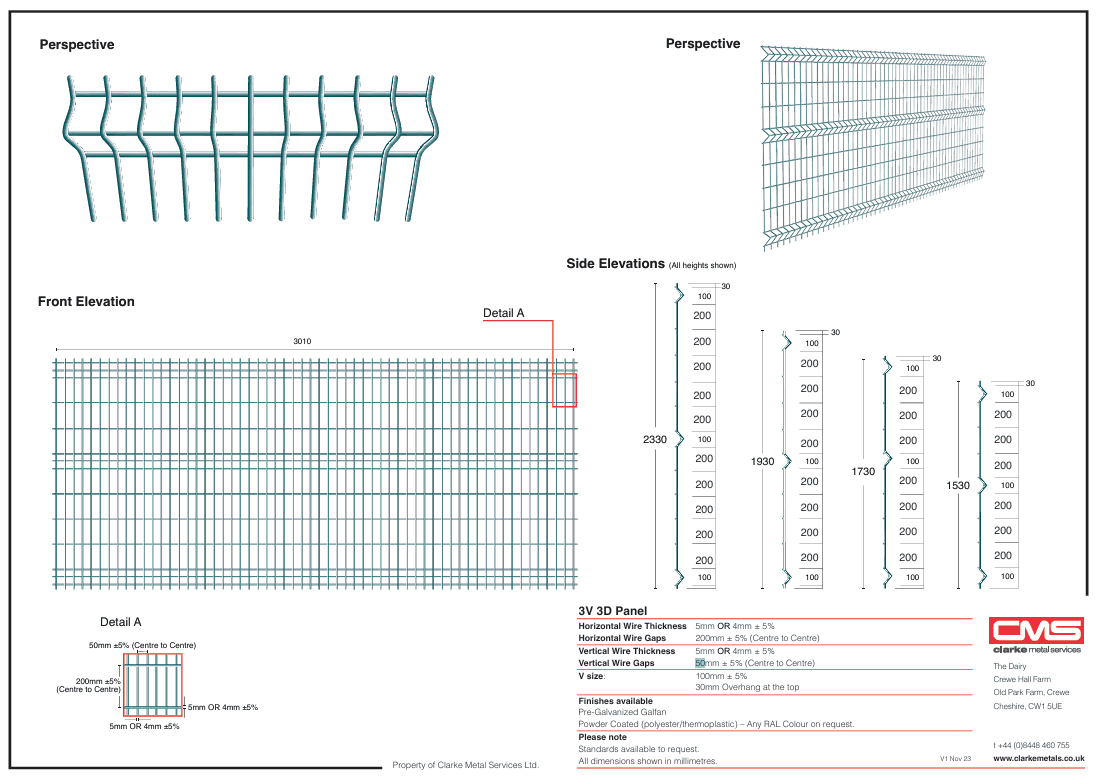

Three-dimensional welded mesh panels offering superior strength and security for perimeter protection.
Specifications:
• Horizontal Wire Thickness: 5mm OR 4mm ± 5%
• Horizontal Wire Gaps: 200mm ± 5% (Centre to Centre)
• Vertical Wire Thickness: 5mm OR 4mm ± 5%
• Vertical Wire Gaps: 50mm ± 5% (Centre to Centre)
• V Size: 100mm ± 5%
• Overhang: 30mm at the top
Finishes Available:
• Pre-Galvanized Galfan
• Powder Coated (Polyester / Thermoplastic) – Any RAL colour on request
Three-dimensional welded mesh panels offering superior strength and security for perimeter protection.
Specifications:
• Horizontal Wire Thickness: 5mm OR 4mm ± 5%
• Horizontal Wire Gaps: 200mm ± 5% (Centre to Centre)
• Vertical Wire Thickness: 5mm OR 4mm ± 5%
• Vertical Wire Gaps: 50mm ± 5% (Centre to Centre)
• V Size: 100mm ± 5%
• Overhang: 30mm at the top
Finishes Available:
• Pre-Galvanized Galfan
• Powder Coated (Polyester / Thermoplastic) – Any RAL colour on request

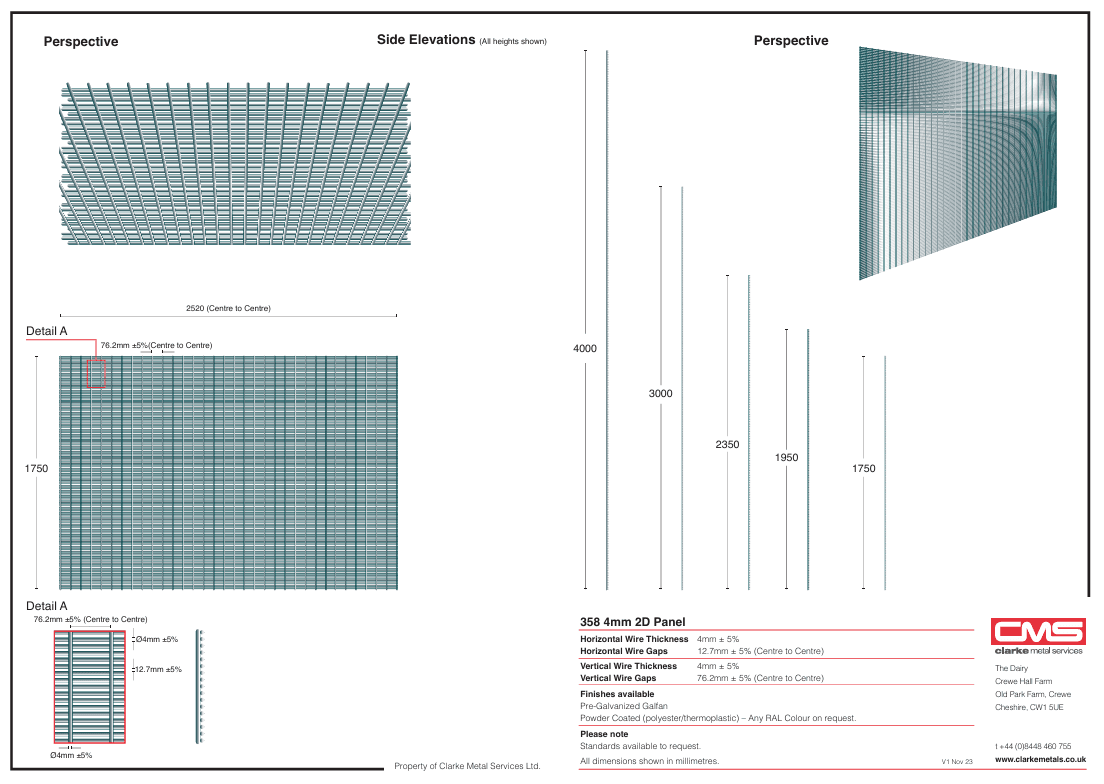

Three-dimensional welded mesh panels offering superior strength and security for perimeter protection.
Specifications
• Horizontal Wire Thickness: 4mm ± 5%
• Horizontal Wire Gaps: 12.7mm ± 5% (Centre to Centre)
• Vertical Wire Thickness: 4mm ± 5%
• Vertical Wire Gaps: 76.2mm ± 5% (Centre to Centre)
Finishes Available
• Pre-Galvanized Galfan
• Powder Coated (Polyester / Thermoplastic) – Any RAL colour on request

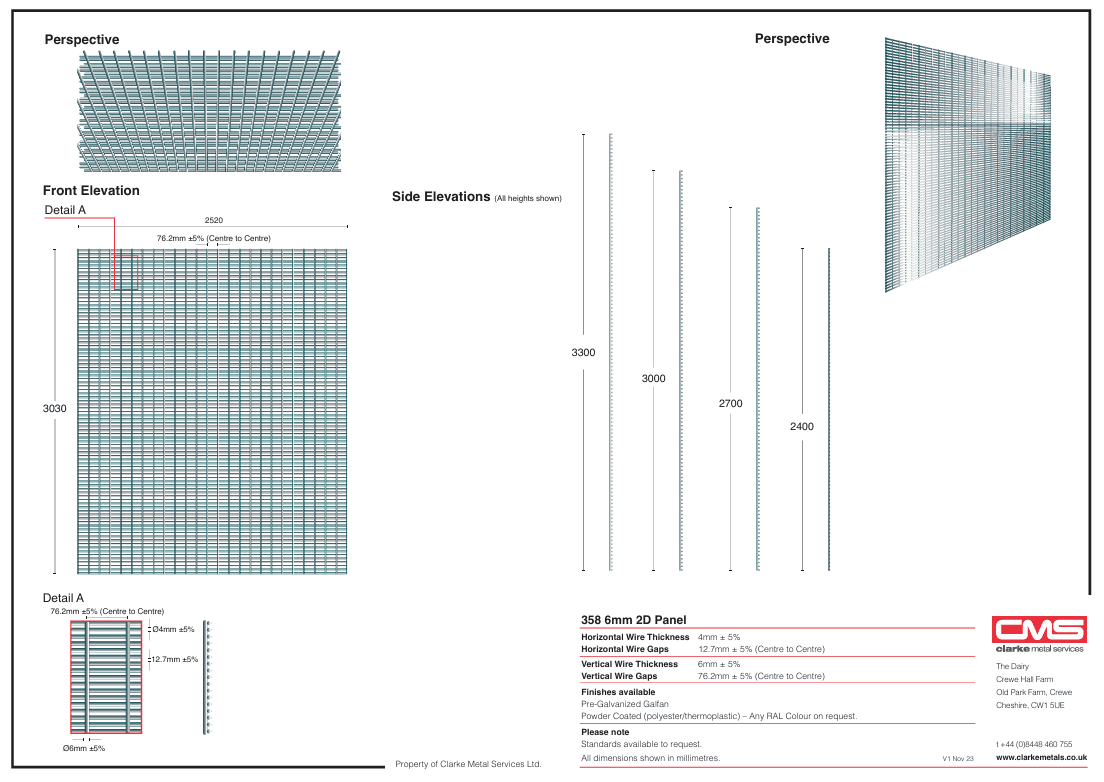

Three-dimensional welded mesh panels offering superior strength and security for perimeter protection.
Specifications
• Horizontal Wire Thickness: 4mm ± 5%
• Horizontal Wire Gaps: 12.7mm ± 5% (Centre to Centre)
• Vertical Wire Thickness: 6mm ± 5%
• Vertical Wire Gaps: 76.2mm ± 5% (Centre to Centre)
Finishes Available
• Pre-Galvanized Galfan
• Powder Coated (Polyester / Thermoplastic) – Any RAL colour on request

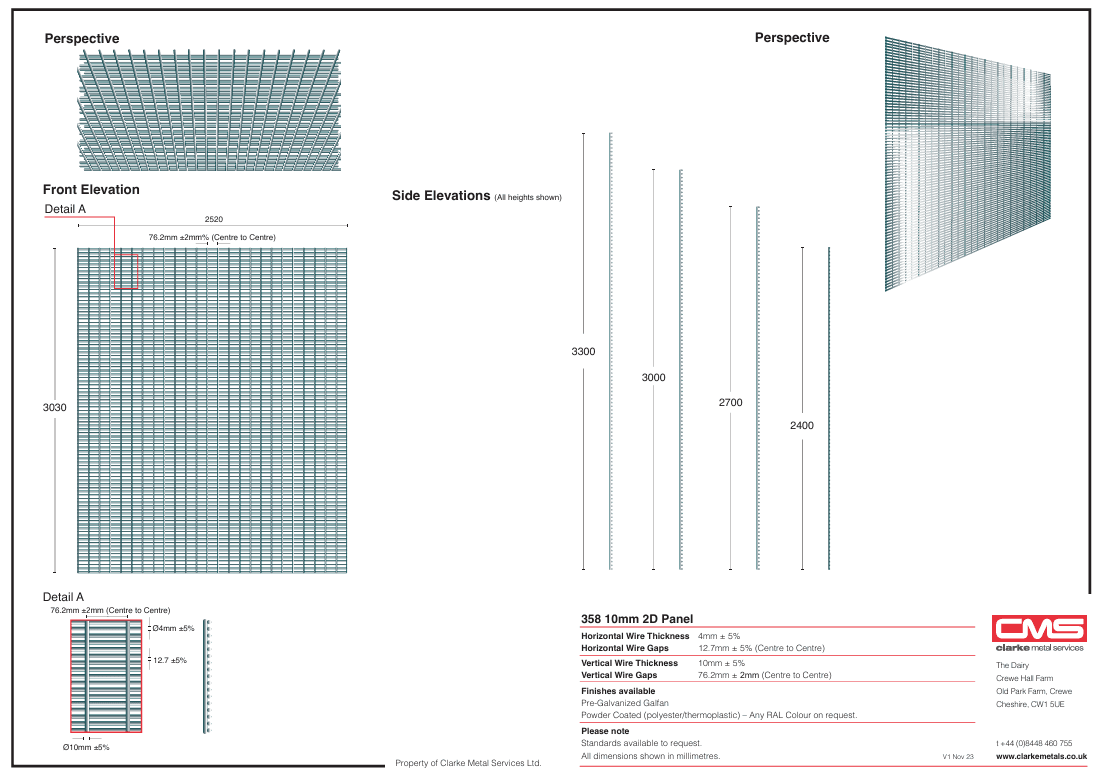

Three-dimensional welded mesh panels offering superior strength and security for perimeter protection.
Specifications
• Horizontal Wire Thickness: 4mm ± 5%
• Horizontal Wire Gaps: 12.7mm ± 5% (Centre to Centre)
• Vertical Wire Thickness: 10mm ± 5%
• Vertical Wire Gaps: 76.2mm ± 2mm (Centre to Centre)
Finishes Available
• Pre-Galvanized Galfan
• Powder Coated (Polyester / Thermoplastic) – Any RAL colour on request

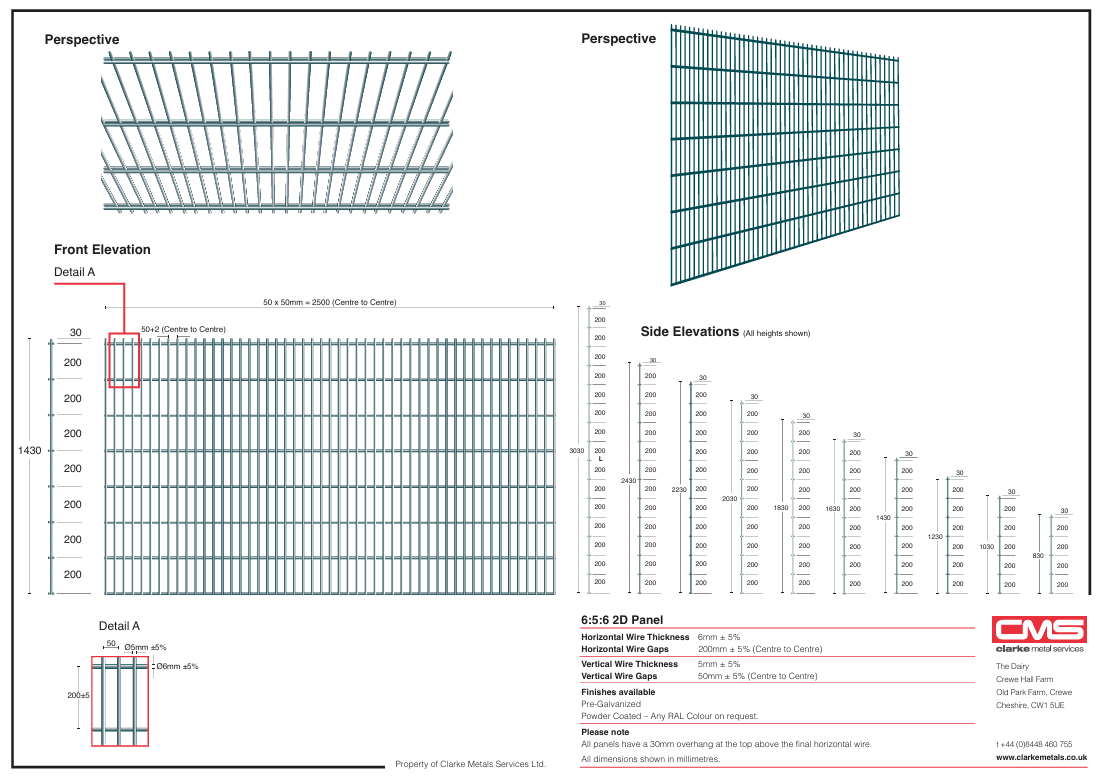

Three-dimensional welded mesh panels offering superior strength and security for perimeter protection.
Specifications
• Horizontal Wire Thickness 6mm ± 5%
• Horizontal Wire Gaps 200mm ± 5% (Centre to Centre)
• Vertical Wire Thickness 5mm ± 5%
• Vertical Wire Gaps 50mm ± 5% (Centre to Centre
Finishes Available
• Pre-Galvanized Galfan
• Powder Coated (Polyester / Thermoplastic) – Any RAL colour on request

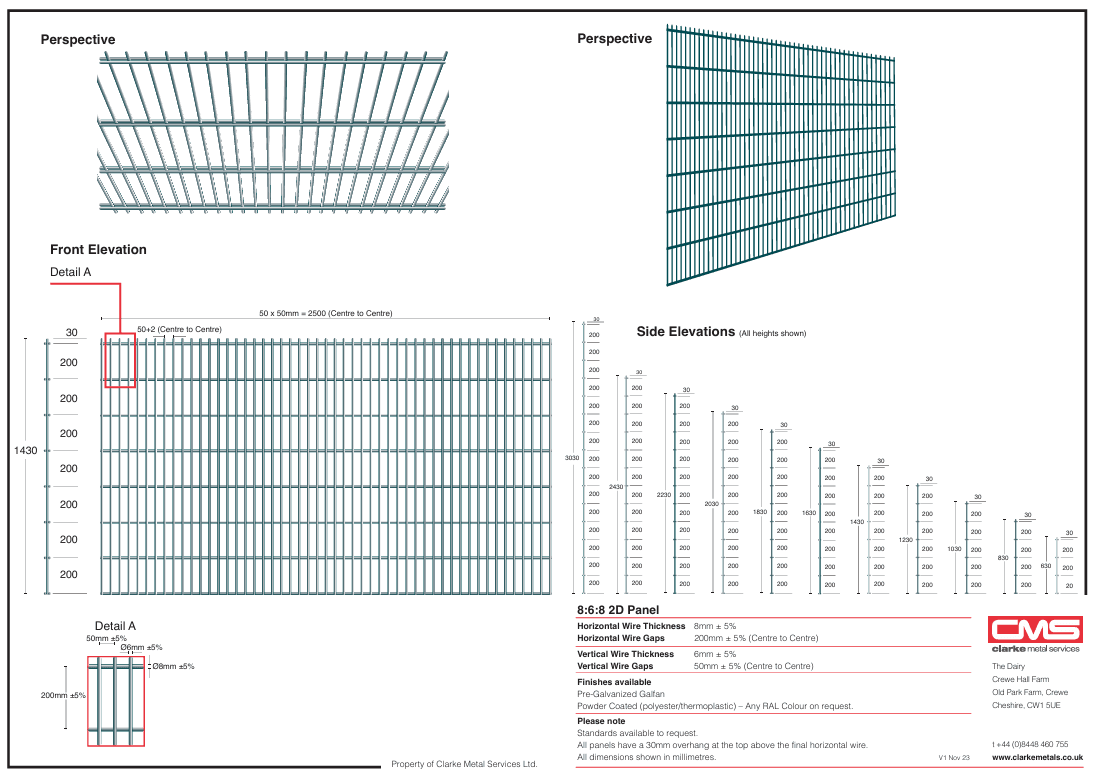

Three-dimensional welded mesh panels offering superior strength and security for perimeter protection.
Specifications
• Horizontal Wire Thickness 8mm ± 5%
• Horizontal Wire Gaps 200mm ± 5% (Centre to Centre)
• Vertical Wire Thickness 6mm ± 5%
• Vertical Wire Gaps 50mm ± 5% (Centre to Centre
Finishes Available
• Pre-Galvanized Galfan
• Powder Coated (Polyester / Thermoplastic) – Any RAL colour on request

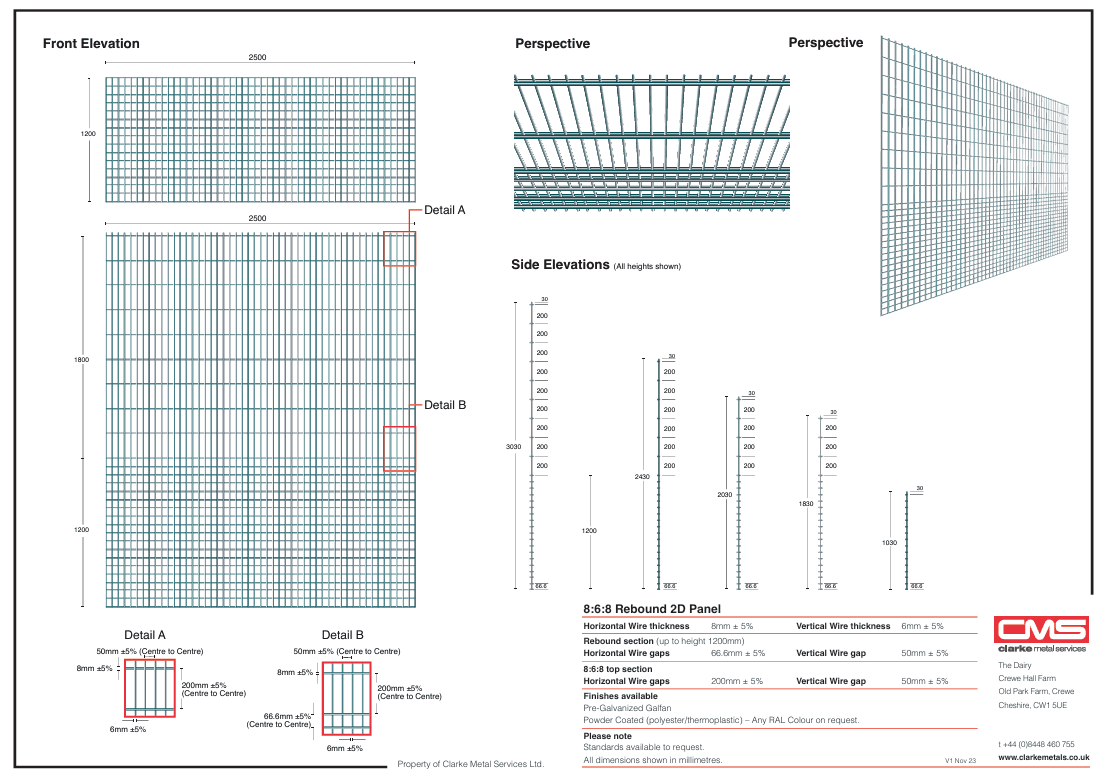

Three-dimensional welded mesh panels offering superior strength and security for perimeter protection.
Specifications
• Horizontal Wire Thickness: 8mm ± 5%
• Vertical Wire Thickness: 6mm ± 5%
Rebound Section (up to 1200mm height)
• Horizontal Wire Gaps: 66.6mm ± 5%
• Vertical Wire Gaps: 50mm ± 5%
8:6:8 Top Section
Horizontal Wire Gaps: 200mm ± 5%
Vertical Wire Gaps: 50mm ± 5%
Finishes Available
• Pre-Galvanized Galfan
• Powder Coated (Polyester / Thermoplastic) – Any RAL colour on request
